RAIL / RED SIGNALS AND STATION QUEUES

Train stuck at a red signal?

Current official signal and line manuals checked October 22, 2026. Source-based route checks, not our own test of your save; exact build not identified.

Check the path ahead before changing priority

A TF3 signal turns green when the approaching train can reserve its intended route. An occupied route, unusable passing place or unavailable station terminal needs a routing check. A free track beside the train does not by itself mean its line can use it.

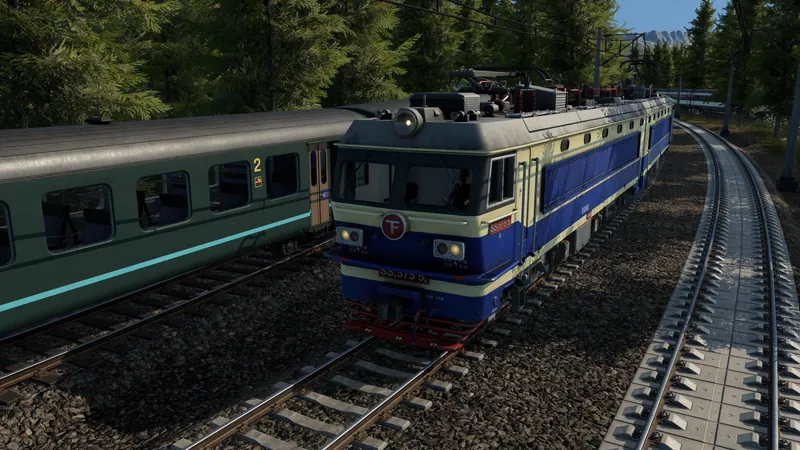

Passenger and freight trains share a wooded railway corridor in Transport Fever 3
A shared railway corridor. Inspect the stopped train’s actual reserved path and terminal; this image is not a universal signal layout. Official press image · © Urban Games ↗

Find the blocked path

  1. Follow the stopped train's actual line. Inspect its next destination and route. If the line shows a red connection warning, use the unreachable-segment checks first. Priority cannot create a missing track connection or a turn at a plain crossing.
  2. Find where the reservation can end. TF3 can reserve past an ordinary station stop. The current signal manual explicitly says stations are not automatic signals. Trace the approach to the next signal or reversing stop instead of expecting a train to release the shared track just because it stopped at a platform.
  3. Check the passing place and direction. Both trains need a continuous usable route through the siding. Inspect the signals at its ends against each route. If a track is intended for one direction, click its signal and set the detail window's One-way dropdown to YES. Check that the other direction still has a route.
  4. Leave enough room after the junction. A stopped train must fit clear of the switch. Position the next signal far enough beyond the junction for the longest train using that waiting space; otherwise its tail can block the route another train needs. Check the actual train length and occupied track.
  5. Inspect the station decision point. Open the line and find its last signal before the station, marked by a blinking arrow in the line's color. Every enabled alternative terminal must be reachable from this point. An empty platform is not a fallback until it is configured and reachable.
  6. Change the diagnosed bottleneck and observe again. Repair the missing turn, direction, clearance or terminal approach. If both routes work but one service repeatedly wins the conflict, inspect line priority. Use waypoints when the intended corridor itself differs.
WATCH THIS SYSTEM

Highlights

Line tools, vehicle comparisons, rail reservations and Mod Hub.

Watch on YouTube ↗

Official pre-release overview. Use the written checks for this task; older videos may describe plans that later changed.

How to tell it worked

The previously stopped service can reserve and traverse its intended path, and opposing services also continue. Observe several encounters and station arrivals; one green signal on an empty network is insufficient to show a busy layout works.

If trains still wait

  • An alternative platform remains unused: check the path from the last signal, including any shared occupied throat. Adding platforms behind the same blocked approach may not remove the conflict.
  • Opposing trains cannot pass: check both directions after enabling one-way operation and make sure each waiting train clears the junction. Raising both priorities cannot create passing space.
  • You want one signal spacing rule: use the longest train and the actual junction geometry. The sources here do not establish a universal number of blocks, or a rule that every train must have the same maximum speed.
  • The train moves but cargo is late: continue with the delivery-timing checklist; loading and maintenance can still delay a usable route.

Related task checks: stop sequence checks.
